1996 Lamborghini Diablo SV-R #12569
SPECIFICATIONS
- MakeLamborghini
- ModelDiablo SV-R
- Year1996
- Serial #12569

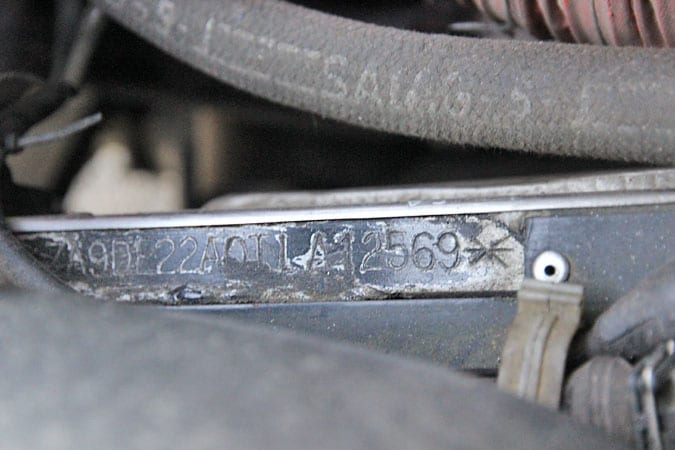

- VINZA9DE22A0LLA12569
- Engine TypeV-12
- Chassis TypeMonocoque
- Number Built12
- Body TypeCoupe
- Body BuilderLamborghini
- Current LocationFerraris Online

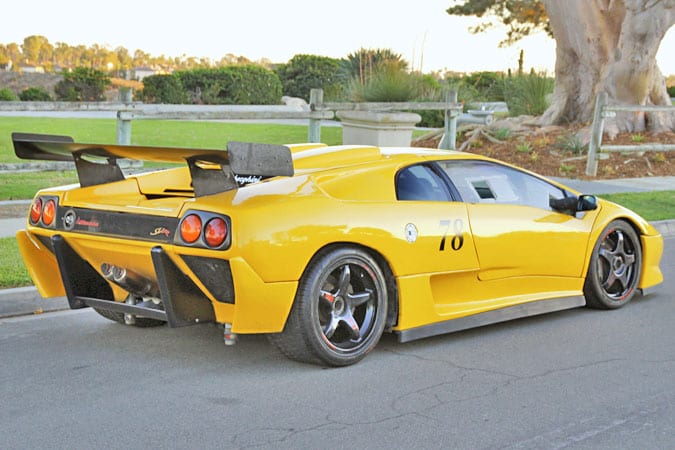

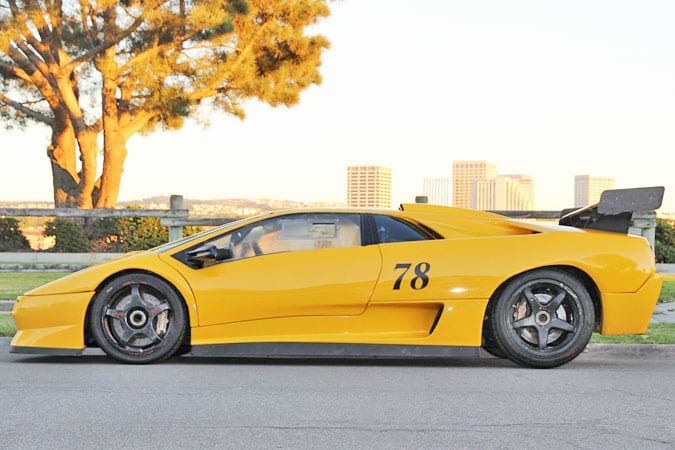

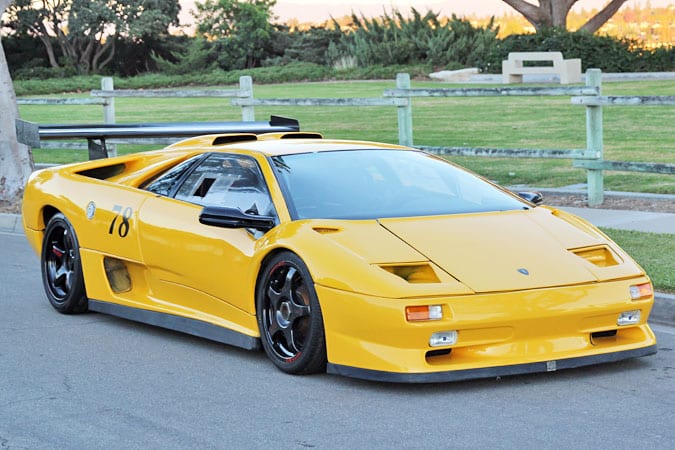

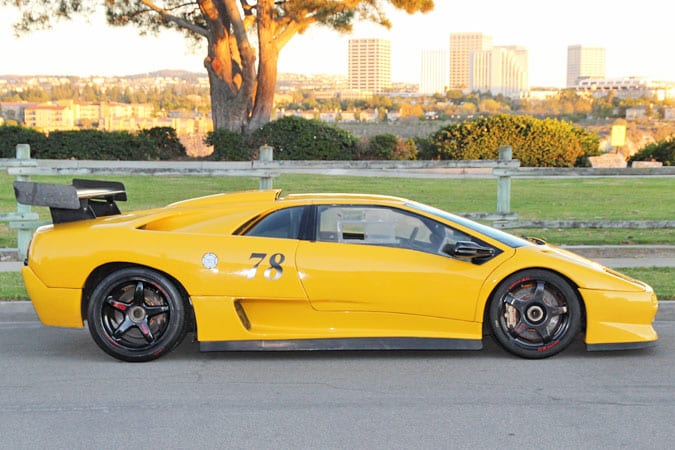

We are pleased to offer 1996 Lamborghini Diablo SV-R s/n 12569, one of only thirty-two lightweight Diablo SV based race cars built for the 1996-97-98 Lamborghini Supercar series. The SV-R was introduced at the Geneva Auto Show, in March 1996, with a press release from Automobili Lamborghini SpA. Lamborghini would offer a three year mono-brand race series open to both professional drivers and gentleman enthusiasts, offering them the opportunity to drive a pure racing Lamborghini Diablo SV-R on the world’s most famed tracks! Indeed, The Diablo SV-R was the first Lamborghini officially entered into racing by the factory, the closest to a GT race car Automobili Lamborghini SpA had yet built. The first 28 Diablo SV-Rs were built from February to early June 1996, with a first public race on June 14th 1996 at the famous Le Mans circuit with no less than 28 SV-Rs entered. All 28 SV-Rs finished, making the initial outing a rare “zero faults operation” in the world of racing.

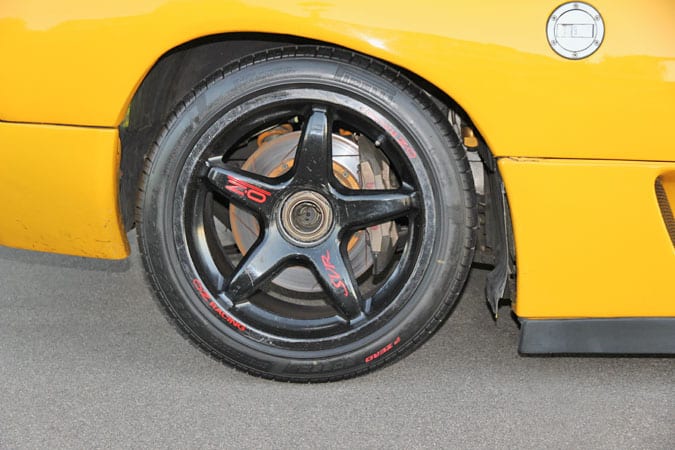

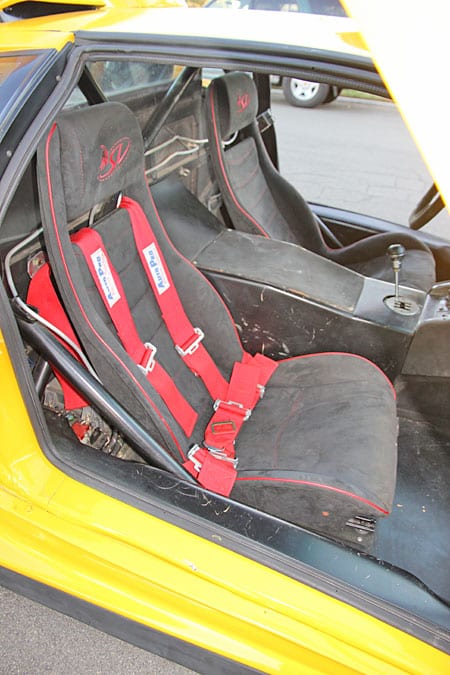

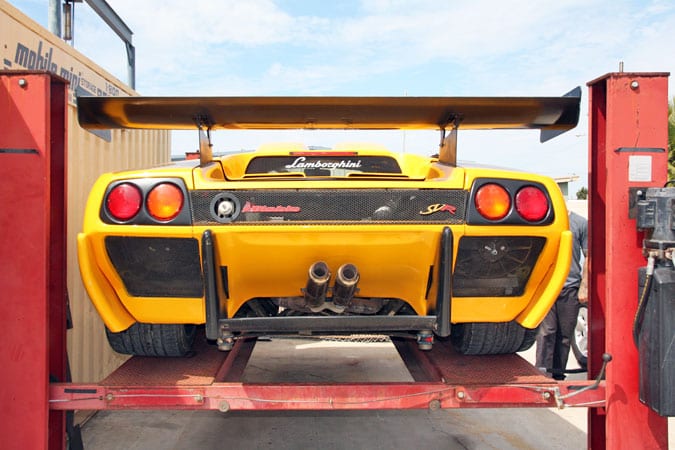

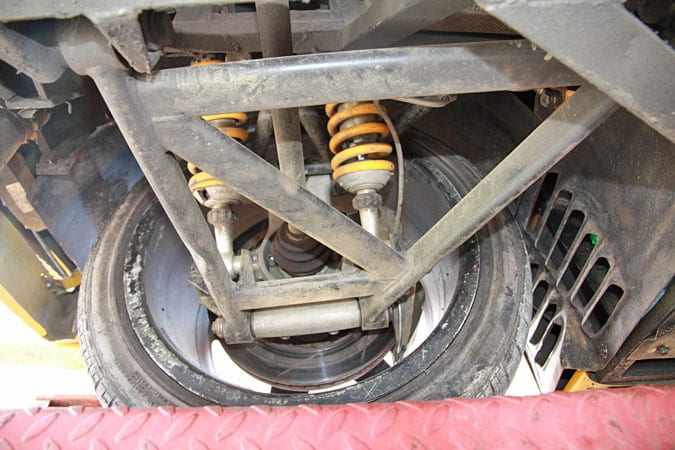

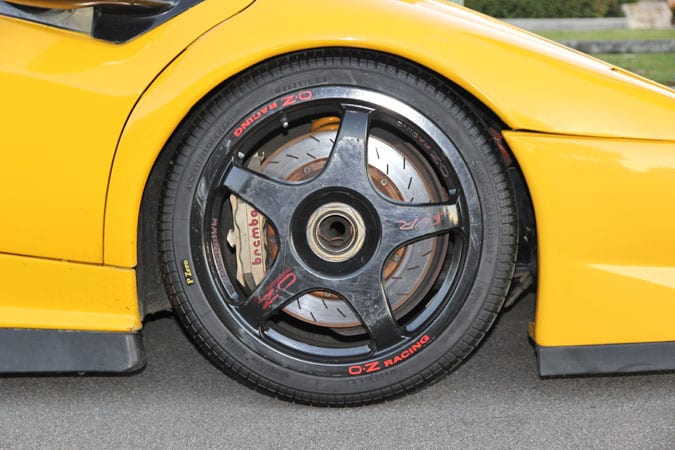

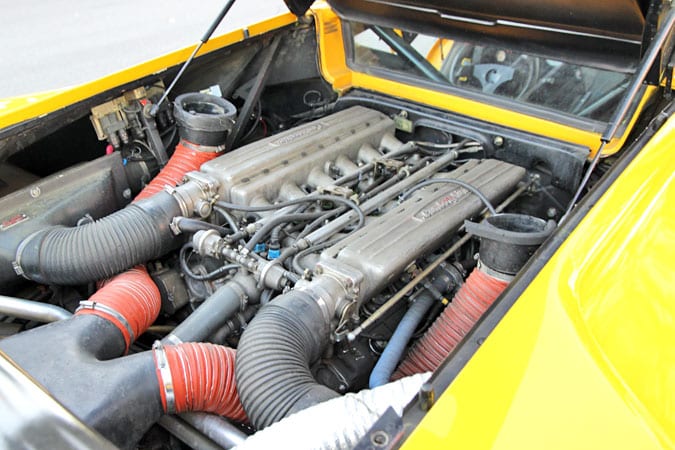

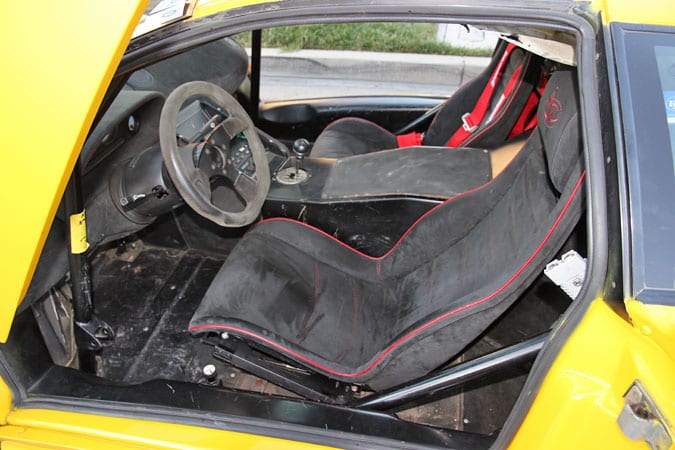

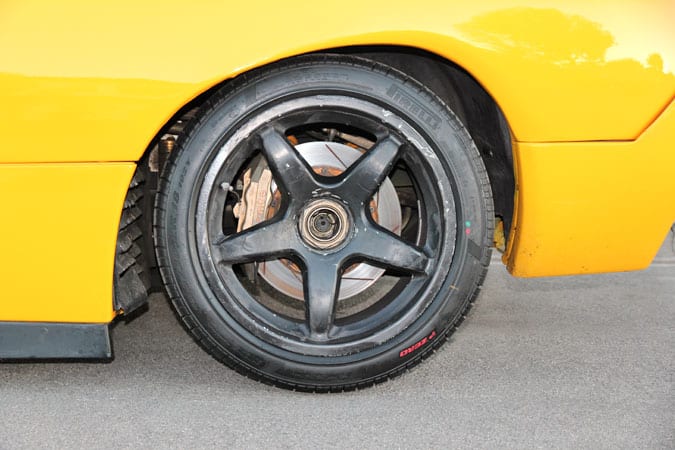

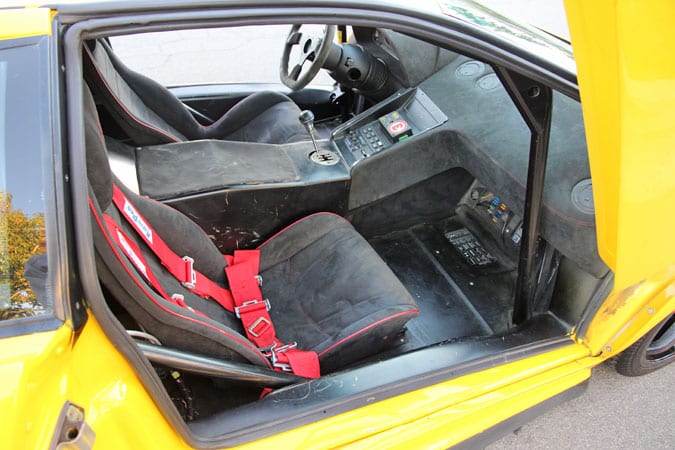

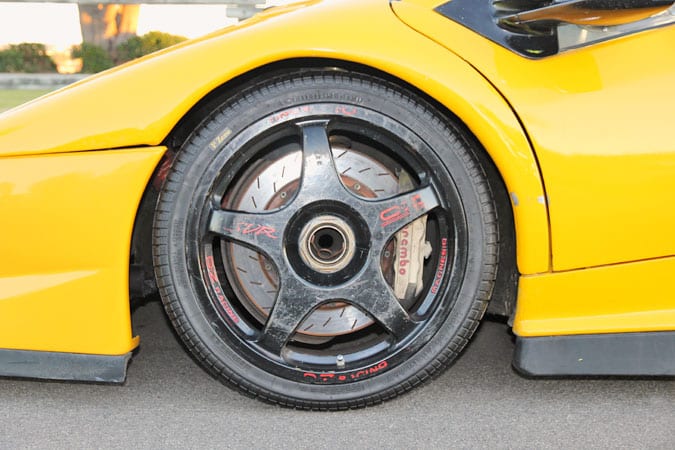

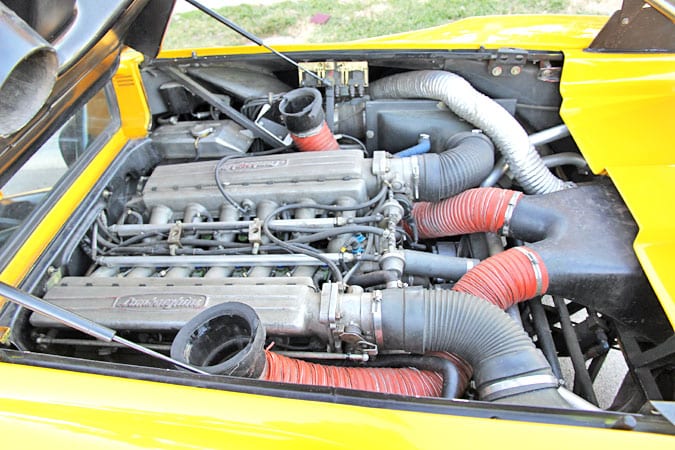

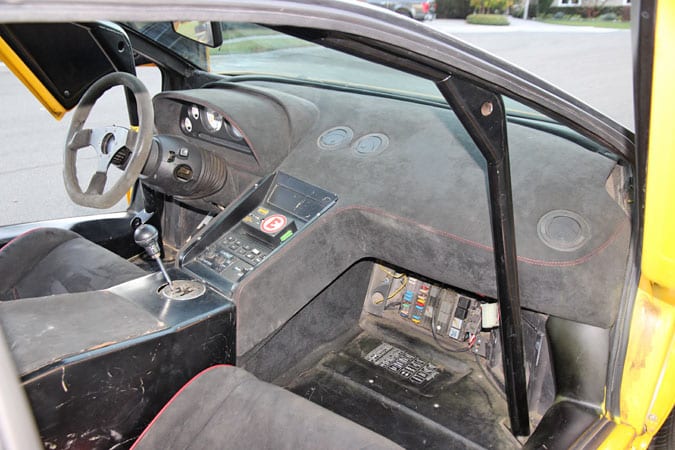

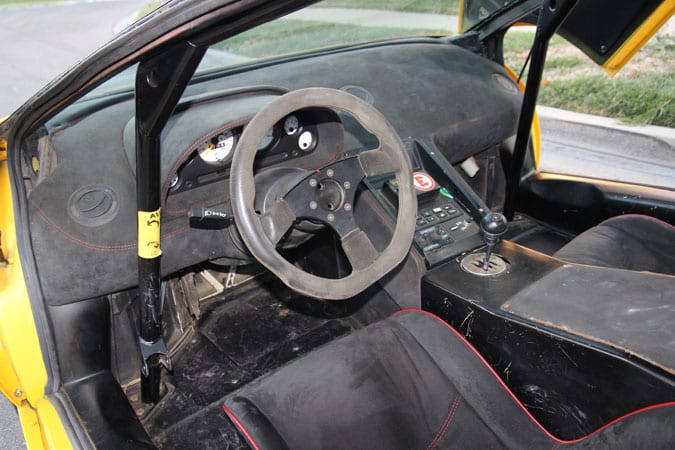

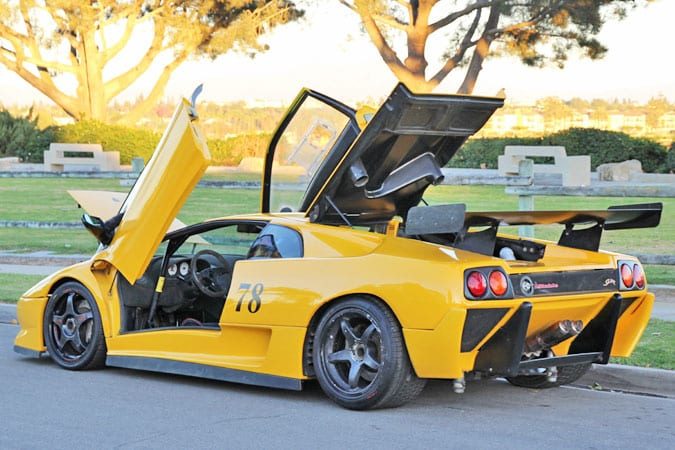

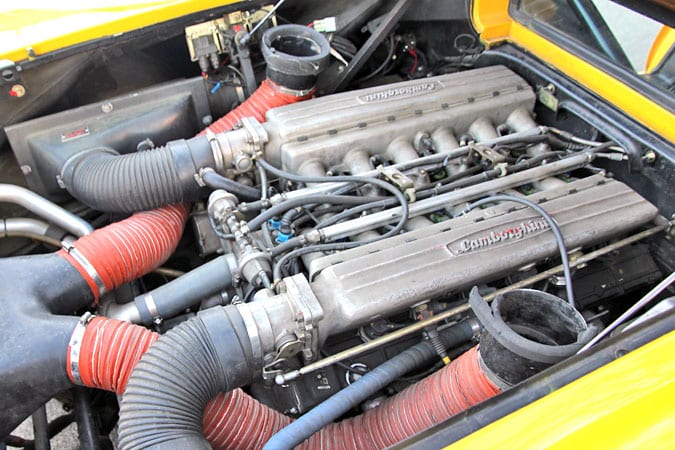

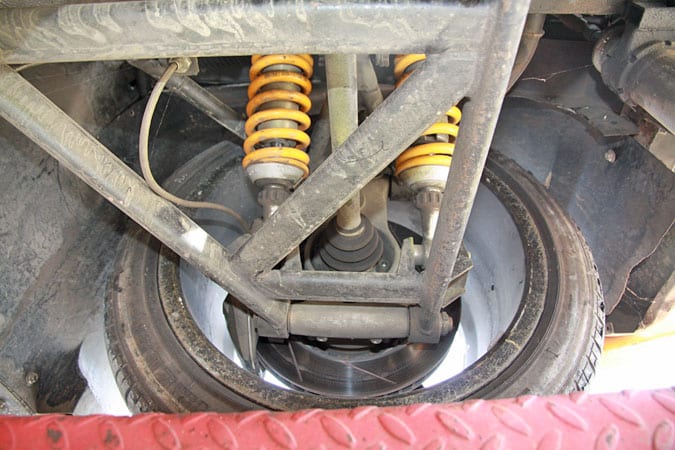

The Diablo SV-R was fitted with a highly tuned 48 valve 5,700 cc V12, fitted with a variable valve timing system, putting out 540 bhp. Power was sent through a five-transaxle, giving 60 mph in 1st, 92 mph in 2nd, 125 mph in 3rd, 160 mph in 4th and a staggering 204 mph in 5th! Stopping was thanks to 355 mm front and 335 rear Brembo brakes, and power was put to the ground through linear rate springs wrapped around Koni 28-12 front and Koni 28-11 rear shocks, backing up 8.5 x 17 inch front and 13 x 18 inch rear one-piece Speedline wheels and massive 240/645 front and 326/640 rear Pirelli tires! The alloy and carbon fiber body was lightened to 1385 kilos, a deep front spoiler and side skirts added downforce by keeping air from underneath the car, while a massive adjustable carbon-fiber wing added yet more downforce and the Diablo’s unique scissor doors further increased the intimidating, very low looks of the Diablo. The stark racing interior featured a full roll cage, a form-fitting Sparco racing seat with full racing harness and a detachable steering wheel. Tire changes were helped by an air jack system. The obligatory fire suppressant system and fuel cell were added. All SV-Rs were delivered by the factory in Yellow, and each driver or team then decaled or painted them as they wished.
The 1996-97-98 Lamborghini Supercar series raced on the world’s most famed tracks, including Le Mans, the Nurburgring, Spa-Francorchamps, Vallelunga, Brands Hatch, Dijon, Silverstone, Magny-Cours, Hockenheim, Imola, Donington and the new Zhuhai track in China. All SV-Rs were maintained at the track and workshop between races by Lamborghini factory mechanics. All SV-Rs were supplied to drivers by Lease Plan, 74 Rue Du Colonel de Rochebrune, 92380, Garches, France. The SV-Rs could be leased for one race or a season, as fit each driver’s budget and schedule. During 1996-97, Diablo SV-R s/n 12569 was driven by Rob Peacock and George Von Opel in 1996, and was then one of several SV-Rs used by Fabio Santaniello to win the 1997 Supercar series.
Diablo SV-R s/n 12569 was imported to the US in 2002 and driven by the current owner, a former IMSA GT and GTP pilot, at Le Belle Macchine twice: on 28-30 June, 2003 and again on 26-28 June, 2004. Diablo SV-R s/n 12569 is ready to go and was serviced by Lamborghini specialist Raging Bull Performance in September of last year with a compression check, a new battery, a full fluid service and an ignition timing, total invoice: $2,106.71. S/n 12569 was again inspected and serviced by Lamborghini specialist Raging Bull Performance in November of last year, including a rebuilt alternator, a coolant flush, a new fuel pump, fuel filter and fuel hoses, total invoice: $5,692.26. All invoices on file, call or e-mail us for copies.

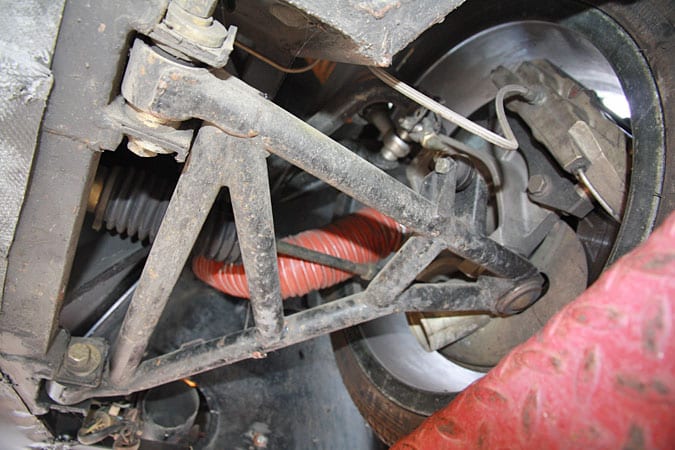

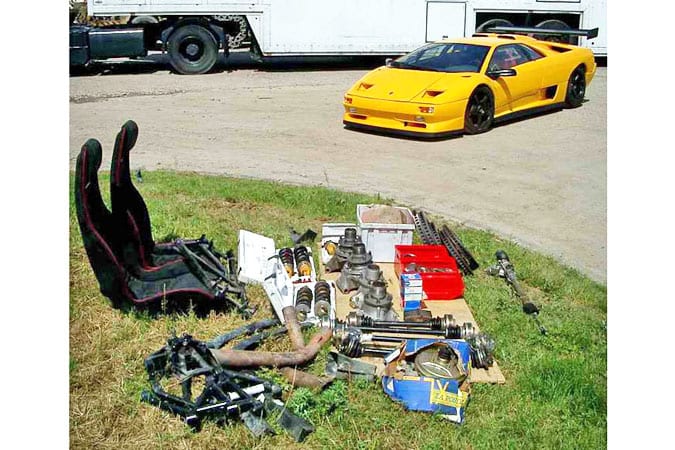

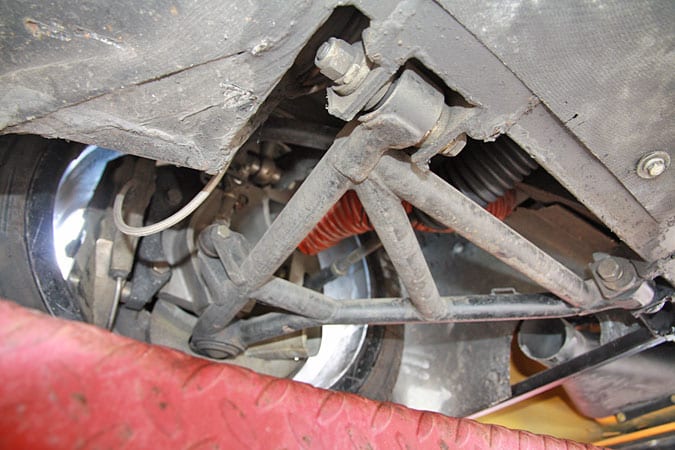

Comes with a spare set of 8.5 x 17 inch front and 13 x 18 inch one-piece Speedline wheels and race tires, the air jack, air wrench and lines, a spare rear spoiler, four suspension uprights, four spare rear axles, a spare steering rack, both lightweight Sparco racing seats, a set of spare suspension “A” arms and four spare racing shocks with springs.

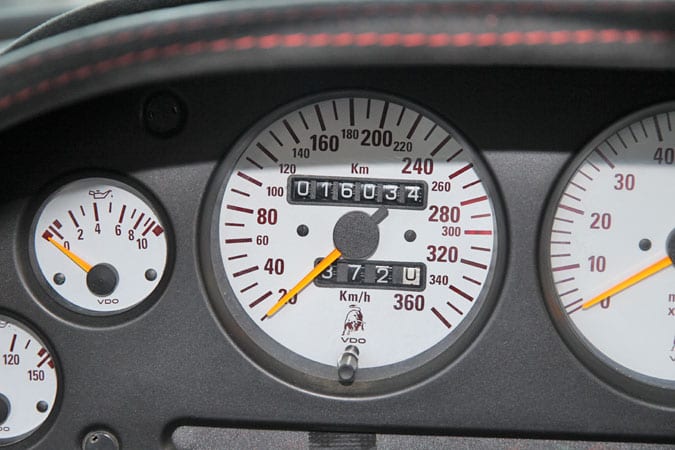

SV-R s/n 12569 is a race car, has no title and is sold on a bill of sale. While several SV-Rs have been made street legal, SV-R s/n 112569 is not currently street legal. Thanks to its spacious cockpit and the ability to fit two seats, s/n 12569 is the ideal track day car, very fast, stable and the 5.7 V-12 sounds incredible. As one of only a few Lamborghini Super trophy Diablo SV-Rs in the country, s/n 12569 offers staggering performance, great looks and would make an excellent addition to any Supercar collection. 16,026 kms.
1996 Lamborghini Diablo SV-R s/n 12569, one of only thirty-two lightweight Diablo SV based race cars built for the 1996-97-98 Lamborghini Supercar series. All SV-Rs were delivered by the factory in Yellow, and each driver or team then decaled or painted them as they wished. During 1996-97, Diablo SV-R s/n 12569 was driven by Rob Peacock and George Von Opel in 1996, and was then one of several SV-Rs used by Fabio Santaniello to win the 1997 Supercar series. Diablo SV-R s/n 12569 was imported to the US in 2002 and driven by the current owner, a former IMSA GT and GTP pilot, at Le Belle Macchine twice. Diablo SV-R s/n 12569 is ready to go and was serviced in September of last year with a compression check, a new battery, a full fluid service and an ignition timing. S/n 12569 was again inspected and serviced in November of last year, including a rebuilt alternator, a coolant flush, a new fuel pump, fuel filter and fuel hoses. All invoices on file.
Comes with a spare set of 8.5 x 17 inch front and 13 x 18 inch one-piece Speedline wheels and race tires, the air jack, air wrench and lines, a spare rear spoiler, four suspension uprights, four spare rear axles, a spare steering rack, both lightweight Sparco racing seats, a set of spare suspension “A” arms and four spare racing shocks with springs.
SV-R s/n 12569 is a race car, has no title and is sold on a bill of sale. While several SV-Rs have been made street legal, SV-R s/n 112569 is not currently street legal. Thanks to its spacious cockpit and the ability to fit two seats, s/n 12569 is the ideal track day car, very fast, stable and the 5.7 V-12 sounds incredible. As one of only a few Lamborghini Super trophy Diablo SV-Rs in the country, s/n 12569 offers staggering performance, great looks and would make an excellent addition to any Supercar collection.
S/n 12569. Diablo SV-R. One of 32 lightweight Diablos built in 1996 for the Lamborghini Supercar series.
1996, March, the Lamborghini Supercar series was introduced at the Geneva Auto Show.
1996, 14 June, the first 28 Diablo SV-Rs were entered for the first Super trophy race at the famous Le Mans circuit. All finished.
1996, June, new to Lease Plan, 74 Rue Du Colonel de Rochebrune, 92380, Garches, France.
1996, June, sold new to Stephane Ratel, organizer of the BPR series, the Venturi Racing Series and the Lamborghini Super Trophy Series. Used as a rent-a-racer to various drivers for a single race or multiple races as suited the driver’s schedule and budget.
1996, driven by Rob Peacock, George Von Opel and other drivers.
1997, one of several Diablo SV-R GTs driven by Fabio Santaniello to win the 1998 Lamborghini Supercar Series.

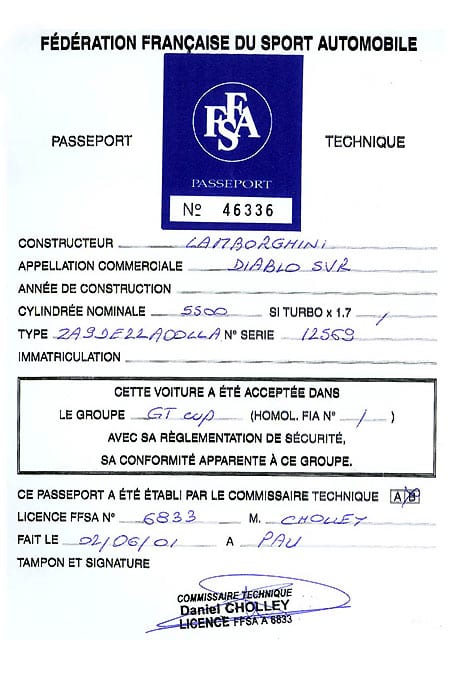

2001, 12 June, French racing passport issued by Daniel Cholley, inspector for the FFSA, for the GT Cup Series.
2002, imported into the US, was on display at a Rick Cole auction and sold pre-auction to the current owner. Delivered with a spare set of 8.5 x 17 inch front and 13 x 18 inch one-piece Speedline wheels and race tires, the air jack, air wrench and lines, a spare rear spoiler, four suspension uprights, four spare rear axles, a spare steering rack, two lightweight Sparco racing seats, spare suspension “A” arms and four spare racing shocks with springs.
2003, 28-30 June, entered at Le Belle Macchine by its current owner, a former IMSA GT and GTP pilot.
2004, 26-28 June, entered at Le Belle Macchine by its current owner, a former IMSA GT and GTP pilot.
2015, 01 Sept., mechanically inspected and serviced by Lamborghini specialist Raging Bull Performance, 986 W. 17th St., Costa Mesa, CA. Compression check, new battery, full fluid service, check ignition timing, remove, clean and re-install fuel rails, test drive, total invoice: $2,106.71
2015, 20 Nov., mechanically inspected and serviced by Lamborghini specialist Raging Bull Performance, Costa Mesa, CA. Rebuild alternator, flush coolant, new fuel pump and fuel filter, replace fuel hose, total invoice: $5,692.26.
2016, June, offered for sale by Mike and Colleen Sheehan’s Ferraris Online LLC.
